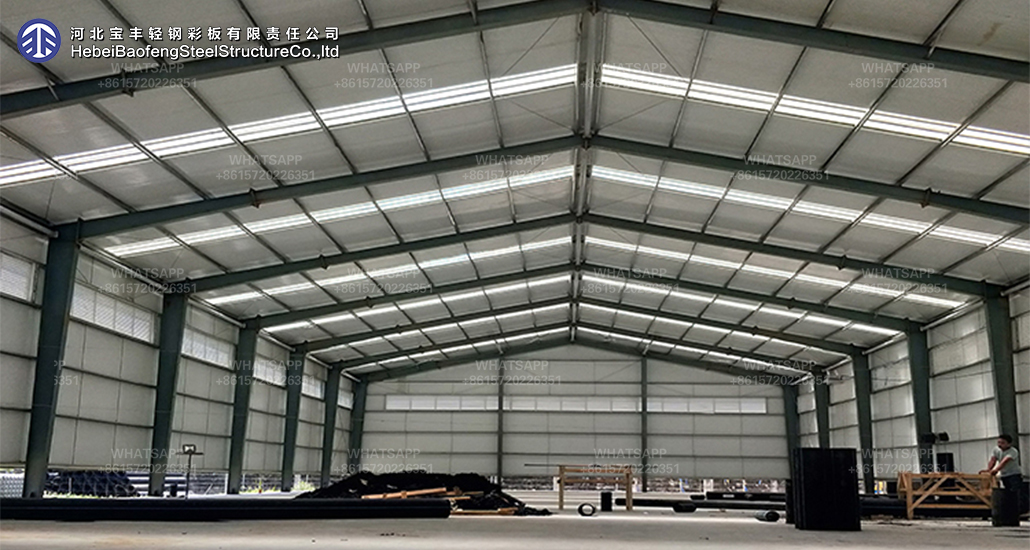

A Portal Steel Structure Frame Warehouse is a type of pre-engineered building system widely used for industrial, commercial, and storage purposes. Its name comes from its primary structural frame: the portal frame, which is a rigid steel frame capable of spanning large distances without internal columns.

Here’s a breakdown of its key features and advantages:

1. Main Structural Features

Portal Frames

Composed of columns and rafters connected by rigid moment-resisting joints.

The shape typically looks like a series of “door frames” placed side by side, creating a clear span interior.

Frames are usually made of hot-rolled steel sections (I-beams) or, in lighter cases, cold-formed sections.

Secondary Elements

Purlins (horizontal beams on the roof) and girts (vertical or horizontal wall beams) support the roof and wall cladding.

Bracing systems (roof, wall, and sometimes knee braces) provide stability against wind and seismic loads.

Cladding

Roof and walls are covered with profiled steel sheets (often with insulation) for quick enclosure.

2. Key Advantages

Large Clear Spans

Internal columns are eliminated, maximizing usable floor space for storage, machinery, or movement.

Fast Construction

Prefabricated components are manufactured off-site, delivered, and bolted together, reducing construction time.

Cost-Effective

Material efficiency, reduced labor, and shorter project timelines lower overall costs compared to traditional concrete structures.

Design Flexibility

Can be designed for various widths, heights, roof slopes, and door/window placements.

Easily expandable by adding more bays.

Durability & Low Maintenance

Steel is resistant to pests, rot, and (with proper treatment) corrosion.

Minimal maintenance required if properly designed.

3. Typical Uses

Factories & Workshops – Where open floor space is needed for production lines.

Warehouses & Logistics Centers – For storage, distribution, and freight handling.

Agricultural Buildings – Equipment storage, barns, or processing facilities.

Retail & Commercial Spaces – Superstores, showrooms, gyms.

Aircraft Hangars – Requiring very wide clear spans.

4. Design Considerations

Loads – Must withstand dead loads, live loads (snow, equipment), wind, and possibly seismic forces.

Fire Protection – May require fireproofing (intumescent paint, board, or spray) depending on local codes and use.

Insulation & Ventilation – Often needed for temperature control and air quality.

Foundation – Simple pad or strip footings are common, but soil conditions determine the design.

5. Limitations

Not ideal for very tall multi-story buildings (typically single-story).

May have less architectural aesthetic appeal compared to conventional structures unless clad creatively.

Requires corrosion protection in coastal or high-humidity environments.

Summary

A portal steel frame warehouse is essentially a pre-engineered steel building system built around rigid portal frames, offering economical, flexible, and quick-to-erect solutions for large, column-free spaces. It’s the go-to choice for modern industrial and storage buildings worldwide.
